PURPLE SNAKE® + PURPLE SNAKE® PLUS

Internationally the No. 1 hose for the brewing and beverage industry

The PURPLE SNAKE® in improved quality is the ideal brand-name hose for use in breweries, wineries, bottling plants, and other establishments of the brewing, beverage, and liquor industry. Flexibility, pressure resistance, and long service life – even under extreme application conditions – have contributed to the hose‘s excellent international reputation. The new optimized, food-compliant inner lining is absolutely neutral to taste and odour, homogeneous, smooth, temperature-resistant up to +90°C / +194°F. It is also resistant to conventional cleaning and sanitizing agents. PURPLE SNAKE® can be easily cleaned conventionally or by CIP.

• White, non-porous and high-performing special lining, absolutely neutral to taste and odour
• Reinforcements: synthetic fibres
• Red, fabric patterned special cover, resistant to ozone, weather, UV and abrasion
• Working pressure up to 16 bar / 232 psi
• Temperature resistance from -30°C to +90°C / -22°F to +194°F (+100°C / +212°F max. 60 minutes)
• Can be steamed up to +130°C / +266°F (max. 30 minutes)
• Suitable for pure alcohol up to 98%
• Meets the requirements of EG 1935/2004 and EG 2023/2006
• Meets the recommendation XXI cat. 2 of BfR and FDA (21 CFR 177.2600)

Product Specification

Application

PURPLE SNAKE® in improved quality is the ideal hose for breweries, winepresses, bottlers and many other installations in the brewing, beverage and spirits industry. Flexibility, pressure resistance and long service life – even under extreme working conditions – are additional advantages, which make the hose the most popular all over the world. The new, optimized lining conforms to foodstuffs regulations and is absolutely neutral to taste and odor, homogeneous, smooth and temperature resistant up to +90°C (+194°F). The hose is resistant to conventional cleaning agents and disinfectants. PURPLE SNAKE® can easily be cleaned conventionally or by CIP installations. This hose is manufactured to European standards.

Construction Tube

White, EPDM, non-porous and high-performing special lining, absolutely neutral to taste and odor. FDA compliant, and conforms to 3-A Sanitary Standard 18-03.

Cover

Red EPDM, fabric patterned special cover, resistant to ozone, weather, UV and abrasion

Reinforcement

synthetic fibres

Temperature Range

Temperature range from -22°F up to +194°F (-30°C up to +90°C) (up to +212°F / +100°C max. 60 minutes)

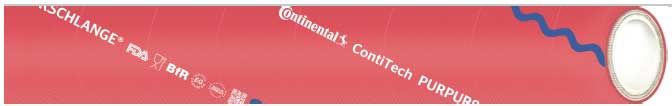

Branding Spiral

Blue wavy line on red cover, interrupted by the words “Continental ContiTech PURPURSCHLANGE® FDA glass/fork symbol BfR EG 1935/2004 2023/2006 Made in Germany”, spirally applied
